Arduino Smart Bike Trainer (ASBT in BLE)

Images from the oscilloscope

  1. Sync signal

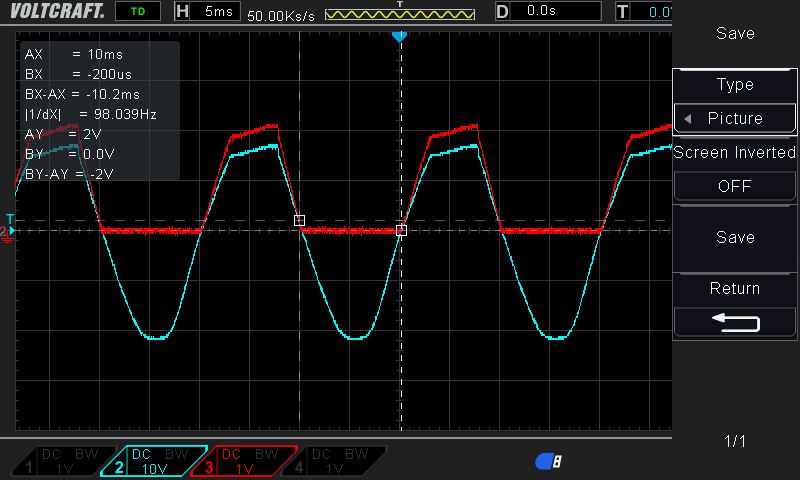

    This images shows the synchronization signal 23VAC and the rectified signal that goes to the Arduino board:

    Sync signal and rectified for arduino

  2. PWM Signals from +9 to _4

    +9 +8 +7 +6 +5 +4 +3 +2 +1 +0 -1 -2 -3 -4
